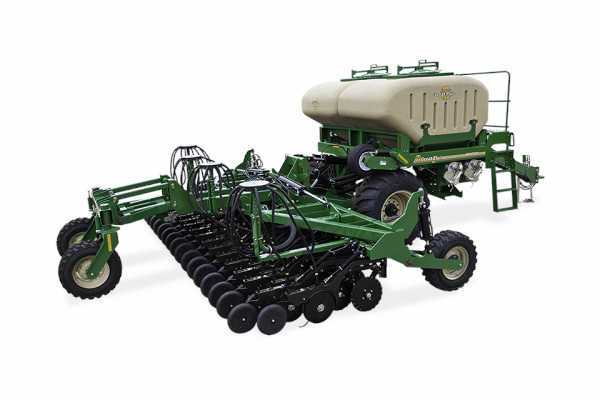

Great Plains NTA-2007

NARROW TRANSPORT WIDTH
Retain the high productivity of an air drill in a unit that folds to under 10-ft. wide for easy transport along roadways and between fields.

COULTER-ASSISTED OPENER SYSTEM
This system splits no-till seeding into two operations: penetration and seed placement. Preloaded at 450 lbs., frame-mounted coulters get the job done by working at the desired depth to ensure optimum seed placement for a uniform stand. Increase coulter depth to penetrate hard, dry soils, or reduce coulter depth in soft conditions. This allows the 07 Series double-disc openers to properly place the seed. Seeding depth is set by the 18-position T-handle at the rear of the opener. Coulter choices include ¾" wavy, 5/8" Turbo, or a 5/16" fluted blade, or opt for no coulters, if desired.

INTEGRAL BIN & IMPLEMENT
The integrated cart-to-implement design offers exceptional maneuverability when backing into a storage shed or the corners of a field. Active hydraulic weight transfer maintains even, consistent penetration across the entire width of the implement.

PRESS WHEEL OPTIONS
Choices include: single 3"x13" double rib press wheels*; 3"x13" center rib press wheels; single 2"x13" smooth press wheels; 1"x12" double-V press wheels; or wedge-style press wheels that create a pinching action to close the trench.

ROW SPACING CHOICES
Choose either 7½" or 6" row spacing for crops like alfalfa and wheat.

UNIFORM SEED DISTRIBUTION
A single fan supplies air to a divided manifold where the star-wheel meters drop the seed into the airflow of each tower. The towers use a transition cone to uniformly divide the seed to individual rows. Full-length seed tubes complete the process, delivering seed to the bottom of the trench.

OPTIONAL PRESS WHEEL SCRAPERS
Add scrapers to keep soil from clogging the press wheels. Available with or without harrows.

OPTIONAL ROW MARKERS
Heavy-duty markers are engineered to penetrate no-till soil and residue.

OPTIONAL HYDRAULIC OR MANUAL AUGER (NTA-3007)
NTA-3007 models can be ordered with either a hydraulic or manual auger for efficient hopper fills.

OPTIONAL GAUGE WHEEL SCRAPER
Removes residue from the gauge wheel to maintain and ensure consistent depth.
