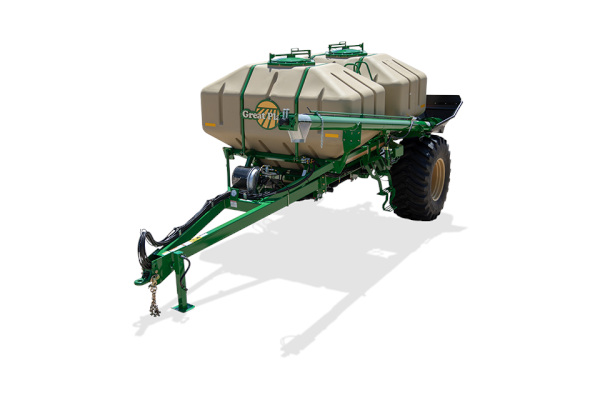

Great Plains ADC2352

Double tap to zoom



Features

Two Tanks with 350-Bushel Total Capacity

The dual tanks allow the operator to run fertilizer or seed through either 175-bushel tank at the same time.

New Loading Design with Optional “Driver’s Side” Auger

The auger has been repositioned and re-engineered to load the drill faster. The new design is well balanced, which simplifies the folding and unfolding process and makes it easier to maneuver by a single operator.

New Large Tire Options

Larger tires are available on pull-behind carts to help prevent compaction.

New DrillCommand™ Software

Fully ISO-compatible electronics give the operator full control of drill and blockage functions with an interface that is easy to use with any modern terminal. Simplified electronics are now centrally located and easily accessible.

Choice of Ground or Variable-Rate Hydraulic Drive

Choose from two simple and reliable drive mechanisms. Hydraulic drive gives the operator access to full on-the-go variable-rate seeding. Ground drive provides simplicity and ease of operation. Each tank can be controlled separately to allow two different rates to be used simultaneously.

Specifications

MODEL INFO 350-Bushel Air Drill Cart
MODELS ADC2352
TYPE Air Drill Cart
AIR DRILL CART WIDTH 9' 10" (3.0m)
AIR DRILL CART HEIGHT 11' 2" (3.4m)
AIR DRILL CART CLEARANCE 23" (58cm)
H.P. REQUIREMENTS (min) 250-400 (depends on air drill)
WEIGHT (lbs.) 8,100
(3,674 kg)
SEEDING RATES (each meter) 1.5 - 320 lbs./acre
(1.68 - 359 kg/ha)
CAPACITIES
MAIN BOX CAPACITY 2-175 bu. hoppers
(2-6,167 L)
