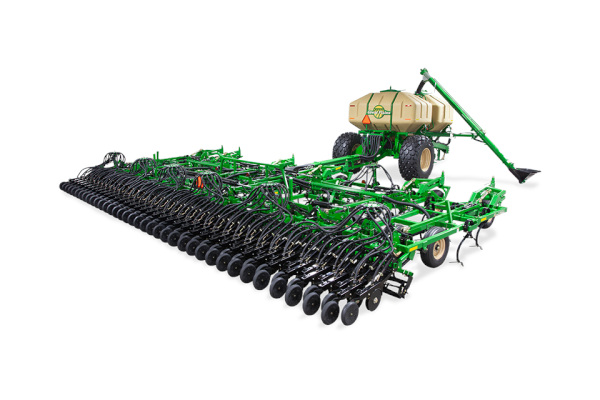

Great Plains FCA4500

Double tap to zoom



Features

Max-Mix™ Shank Pattern
On an effective 7" spacing, the Max-Mix shank pattern creates the perfect seedbed by eliminating weeds and uniformly mixing soil, residue, and fertilizer (if applying) for even distribution.



Large-Capacity Cart
The Cultivator Air Drill implement couples to a 350 bu., 2-bin cart for reliable, uniform delivery of seed and fertilizer to the implement.



Combine Tillage and Seeding
This highly-productive implement combines tillage and seeding to reduce time, fuel, and tractor depreciation hours.



00 Series Opener
Proven, reliable Great Plains 00 Series Openers provide perfect seed-to-soil contact and quick, uniform emergence by precisely placing seed in moist, freshly-tilled soil.

Specifications

MODEL INFO 45' FIELD CULTIVATOR AIR DRILL
MODELS FCA4500
WORKING WIDTH 45' 10" | 45'
TRANSPORT WIDTH 16' 10"
TRANSPORT HEIGHT 14' 6"
OVERALL LENGTH 30' 5"
H.P. REQUIREMENTS 350+
WEIGHT (approx. range)  28,000 lbs.
OPENER SERIES 00 Series
NUMBER OF OPENERS 72
ROW SPACING 7.5", 10"
NUMBER OF SHANKS 77
SHANK SPACING 7"
SEED CAPACITY 2 - 175 bu. hoppers
