Call UsGreat Plains 606NT

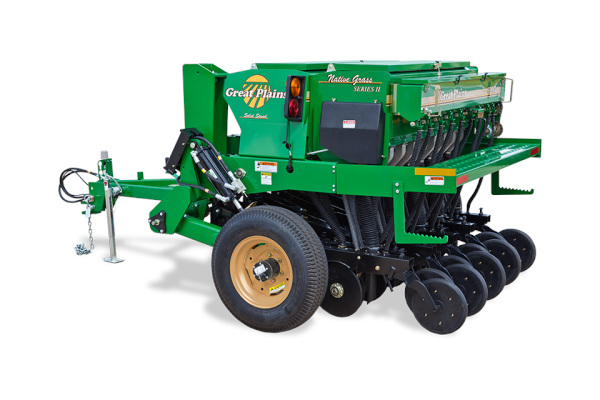

6' End Wheel No-Till Compact Drill 606NT
Overview:
The Great Plains 606NT 6' Pull-Type No-Till Drill’s compact design is ideal for seeding into everything from pasture renovations to food plots. It features nine 06 Series Openers and a choice of 5/16" fluted or 5/8" Turbo coulter blade options. Its end wheel design reduces sideloading when operated on contours and curv... + Read More
Features
OPTIONAL WEIGHT BRACKETS
The 606NT has a weight bracket that can be added to each end of the drill to add up to 600 pounds of weight for better penetration in extremely difficult no-till conditions.
HYDRAULIC DEPTH STOP
Wide range of adjustments for matching coulter depth to seeding depth.
END WHEEL DESIGN
Rugged, time-proven design stays on side-hills and maintains accurate seed placement in undulating terrain.
T-HANDLE OPENER DEPTH ADJUSTMENT
The exclusive T-handle depth adjustment features 18 positions in 1/8" increments to properly set seed depth.
4-SPEED GEARBOX
Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.
Specifications
| MODEL INFO | 6' Pull-Type |
| MODEL | 606NT |
| PRIMARY DESIGN | End Wheel No-Till |
| ROW SPACINGS | 7.5" (19.05 cm) |
| NUMBER OF OPENERS | 9 |
| TIRE SIZE | 7.00-15LT |
| Hp REQUIREMENTS (min) | 40+ hp |
| WEIGHT (Approx.) | 2,700 lbs* (1,124 kg) |
| DIMENSIONS | |
| WORKING WIDTH | 67.5" (171.5 cm) |
| WIDTH | 8'10" (2.69 m) |
| LENGTH (transport) | 11'5" (3.48 m) |
| CLEARANCE (transport) | 14" (35.6 cm) |
| HEIGHT (transport) | 5'1" (1.55 m) |
| OPENER INFO | |
| OPENER SERIES | 06 Series |
| OPENER TRAVEL | 6.5" (16.51 cm) |
| OPENER DEPTH RANGE | 0-3.5" (0-8.89 cm) |
| OPENER DOWN PRESSURE | 90-180 lbs (40.82-81.64 kg) |
| COULTER | 5/8" Turbo or 5/16" Fluted |
| COULTER PRE-LOAD | 450 lbs (203 kg) |
| CAPACITIES | |
| MAIN BOX CAPACITY | 12 bu. |
| SMALL SEED BOX | 1.44 bu. |
| NATIVE GRASS BOX | 6 bu. |
| FERTILIZER | N/A |
| 2ND MAIN BOX | N/A |
