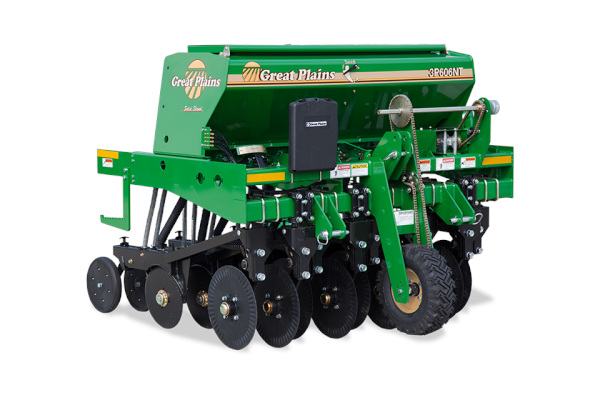

Great Plains 3P606NT

Double tap to zoom



Features

06 SERIES OPENER
The 06 Series row unit utilizes the “Fluff and Plant” no-till system with an integrally-mounted coulter to cut residue and prepare a mini seedbed for the trailing double-disc opener. The opener discs are 13.5" in diameter and 4mm thick with 205 triple-lip sealed bearings, and ¼" opener disc lead. Our unique full-length seed tube design and trailing flap control the seed all the way to the bottom of the seed trench where the seed stays in place.

3-POINT MOUNTED
Category II 3-point mounting setup.

CENTER-MOUNTED DRIVE WHEEL
Eight settings allow the height of the ground drive wheel to be repositioned as needed.

VERSATILE BOX COMBINATIONS
Seed up to three different seeds at the same time (main seedbox, Native Grass, Small Seeds).

4-SPEED GEARBOX
Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

FLUTED SEED CUPS
With powdered metal flutes, these 1¾" seed cups deliver outstanding accuracy.

LARGE BOX CAPACITY
With a 2 bu./ft. capacity, a larger seed box reduces downtime and covers more acres per fill.

LEAD COULTER OPTIONS
Choose between a 5/16" fluted coulter blade that penetrates easily for minimum tillage or a 5/8" Turbo coulter blade that is more aggressive and prepares a mini seedbed ahead of the opener. Preloaded springs offer 450 lbs. of down pressure per row on the leading coulter.

PRESS WHEEL OPTIONS
Choices include, from left, 3"x13" double rib; 3"x13" center rib; 2"x13" smooth; 1"x12" double-V; or double wedge-style press wheels that create a pinching action to close the seed trench.

T-HANDLE OPENER DEPTH ADJUSTMENT
Provides 18 different positions for accurate depth control.

OPTIONAL SEED BOX AGITATOR
Eliminates bridging and provides consistent seed flow to the seed cups.

OPTIONAL WEIGHT BRACKET
A weight bracket that can be added to each end of the drill to add up to 600 pounds of weight for better penetration in extremely difficult no-till conditions.

Specifications

MODEL INFO 6' Mounted
MODEL 3P606NT
PRIMARY DESIGN No-Till
ROW SPACINGS 7.5" (19.05 cm)
NUMBER OF OPENERS 9
TIRE SIZE 5.70Lx8
Hp REQUIREMENTS (min) 60 hp
WEIGHT (Approx.) 2,280 lbs* (1,034 kg)
DIMENSIONS
WORKING WIDTH 67.5" (171.5 cm)
WIDTH 72.5" (184.2 cm)
LENGTH (transport) 61" (154.9 cm)
CLEARANCE (transport) Varies by Tractor
HEIGHT (transport) Varies by Tractor
OPENER INFO
OPENER SERIES 06 Series
OPENER TRAVEL 6.5" (16.51 cm)
OPENER DEPTH RANGE 0-3.5" (0-8.89 cm)
OPENER DOWN PRESSURE 90-180 lbs (40.82-81.64 kg)
COULTER 5/8" Turbo or 5/16" Fluted
COULTER PRE-LOAD 450 lbs (203 kg)
CAPACITIES
MAIN BOX CAPACITY 12 bu.
SMALL SEED BOX 1.44 bu.
NATIVE GRASS BOX 6 bu.
FERTILIZER N/A
2ND MAIN BOX N/A
* Weights based on 7-1/2" row spacing with main seedbox only. Weights will vary with options.
