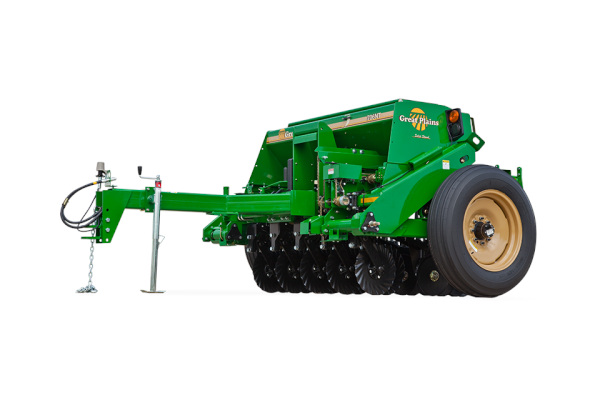

Great Plains 706NT

Double tap to zoom



Features

06 SERIES OPENER
The 06 Series row unit utilizes the “Fluff and Plant” no-till system with an integrally-mounted coulter to cut residue and prepare a mini seedbed for the trailing double-disc opener. The opener discs are 13.5" in diameter and 4mm thick with 205 triple-lip sealed bearings, and ¼" opener disc lead. Our unique full-length seed tube design and trailing flap control the seed all the way to the bottom of the seed trench where the seed stays in place.

ADJUSTABLE HITCH HEIGHT
Six-position hitch adjusts to your tractor's hitch height to keep the drill level in planting position.

HIGH TRANSPORT CLEARANCE
With the high clearance and end wheel design, the 706NT can virtually go anywhere your tractor can pull it without gouging or bottoming out.

LOCK-OUT HUBS
Disengages all drive components, reducing wear and tear during transport.

VERSATILE BOX COMBINATIONS
Seed up to three different seeds at the same time (main seedbox, Native Grass, Small Seeds).

4-SPEED GEARBOX
Changing seed rates is quick and effortless with these permanently lubricated, sealed gearboxes.

END WHEEL DESIGN
Large end wheels stay on side hills and maintain accurate seed placement in undulating terrain. Lockout hubs save drive components from wear.

LEAD COULTER OPTIONS
Choose between a wide 3/4" wavy coulter, a 5/8" Turbo coulter blade that is aggressive and prepares a mini seedbed ahead of the opener, or a 5/16" fluted coulter blade that penetrates easily to perform minimum tillage.

PRESS WHEEL OPTIONS
Choices include, from left, single 3"x13" double rib press wheels; 3"x13" center rib press wheels; single 2"x13" smooth press wheels; 1"x12" double-V press wheels; or wedge-style press wheels that create a pinching action to close the trench.

T-HANDLE OPENER DEPTH ADJUSTMENT
Provides 18 different positions for accurate seed depth control.

OPTIONAL FERTILIZER BOX
Easy cleanout and six-point meter wheels accurately meter fertilizer.

OPTIONAL SECOND (DUAL) SEED BOX
Option increases seeding versatility and efficiency.

Specifications

MODEL INFO 7' PULL-TYPE
MODEL 706NT
PRIMARY DESIGN End Wheel No-Till
ROW SPACINGS 7.5" (19.05 cm)
NUMBER OF OPENERS 10
TIRE SIZE 9.00 x 24 8-ply
Hp REQUIREMENTS (min) 55+ hp
WEIGHT (Approx.) 3,800 lbs* (1,769 kg)
DIMENSIONS
WORKING WIDTH 7' (2.13 m)
WIDTH 9'10" (3.00 m)
LENGTH (transport) 13'10" (4.22 m)
CLEARANCE (transport) 13.5" (34.29 cm)
HEIGHT (transport) 6'7" (2.0 m)
OPENER INFO
OPENER SERIES 06 Series
OPENER TRAVEL 6.5" (16.51 cm)
OPENER DEPTH RANGE 0-3.5" (0-8.89 cm)
OPENER DOWN PRESSURE 90-180 lbs (40.82-81.64 kg)
COULTER 5/8" Turbo or 5/16" Fluted
COULTER PRE-LOAD 450 lbs (203 kg)
CAPACITIES
MAIN BOX CAPACITY 17.1 bu.
SMALL SEED BOX 1.68 bu.
NATIVE GRASS BOX 7 bu.
FERTILIZER 6.5 cu./ft.
2ND MAIN BOX 7 bu.
* Weights based on 7-1/2" row spacing with main seedbox only. Weights will vary with options.
