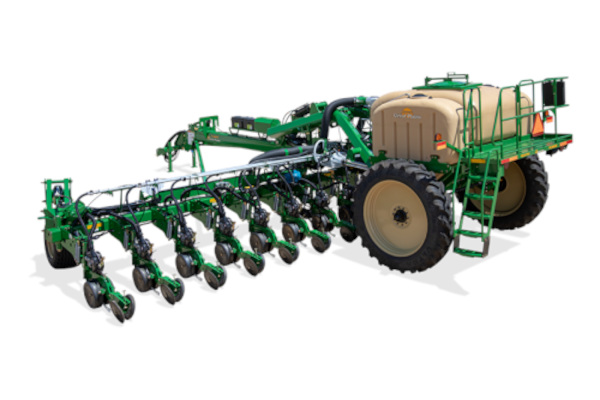

Great Plains PL5800

Double tap to zoom



Features

5000 SERIES AIR-PRO® METER
The 5000 Series Air-Pro­­ Meter offers industry-leading singulation with its simple, positive air pressure meter. It includes a large seed pool and seed inlet opening so the meter stays full — even at higher speeds.

5000 SERIES ROW UNIT
The 5000 Series row unit features 15" 4mm opener blades that are offset 1/2" to handle residue and cut through tough soil conditions. The shorter closing wheel arm maintains better seed-to-soil contact around curves and contours.

GREAT PLAINS ISO SOLUTIONS SUITE
The Great Plains ISO Solutions Suite delivers a simplified and universal ISOBUS-based interface solution that includes plug-and-play setup without the need for expensive aftermarket unlocks and subscriptions; access to remote support; and terminal extension capabilities from the field. This solution can be used with all Great Plains ISOBUS-compatible products.

2-POINT OR HYDRAULIC HITCH
Choose either the 2-point hitch or the hydraulic tongue hitch (inset) for hooking to tractors without 3-point lift arms.

ADVANCED AIR DELIVERY SYSTEM
A dual-fan air system with a newly-designed seed pickup system provides advanced seed delivery for many types of seed with various seed treatments, even across uneven terrain.

BULK DELIVERY
Choose either 82-bu. or 150-bu. hoppers. 82-bu. hoppers can be equipped with two side tanks for liquid fertilizer. A dual-fan air system with a newly-designed seed pickup system provides advanced seed delivery for many types of seed with various seed treatments.

HEMP SEED DISC
New, 5-cell and 30-cell hemp seed disc that meters seed accurately.

IRC, GROUND, OR HYDRAULIC DRIVE
Choose either Individual Row Control (IRC), hydraulic drive, or ground drive with a contact wheel. IRC allows variable-rate seeding and consistent seed spacing, even on tight turns.

SIMPLIFIED FRAME DESIGN
The PL5800’s frame has been simplified with redesigned wing toolbars that act as meter air-pressure manifolds. This eliminates the need for a dedicated air manifold above the toolbar.

SUREFORCE BY AGLEADER
Now available with SureForce by AgLeader! SureForce responds instantly to changing conditions, giving each row the exact pressure needed to plant at the ideal depth.

OPTIONAL ROW-PRO™
Adjusts to ensure even emergence and consistent side depth wheel pressure.

OPTIONAL VISIGAGE
Monitors flow rates and ensures consistent delivery of liquid fertilizer.

OPTIONAL LIQUID FERTILIZER
Add two 200-gal. side tanks for liquid fertilizer application. (82-bu. hoppers only)

OPTIONAL COULTERS & ROW CLEANERS
Effectively cut and remove trash for superior seed placement.

OPTIONAL 7" OR 12.1" MONITOR
Choose between two Topcon monitor sizes.

Specifications

MODEL INFO 16-Row, Bulk-Fill
MODELS PL5800
ROW SPACINGS 15", 20", 30", 36", TR30", TR36"
NUMBER OF ROWS 31, 24, 16, 12, 32, 24
*ENGINE H.P. REQUIREMENTS (min) 165-275
WEIGHT (lbs.) 15,800 - 20,160
DRIVE OPTIONS IRC (Individual Row Control electronic drive)
Variable Rate Hydraulic Drive
Contact Drive
DIMENSIONS
PLANTING WIDTH 38' 10"
(11.8m)
WIDTH (no markers) 40'
(12.2m)
WIDTH (transport) 13' 6"
(4.11m)
HEIGHT (transport) 10' w/o markers, 11' 4" w/markers
(3.04m w/o markers, 3.45m w/markers)
CAPACITIES
SEED CAPACITY 82 bu Poly Hopper (2,890 L)
150 bu Poly Hopper (5,286 L)
FERTILIZER CAPACITY 400 gal. total capacity (1,514 L)
(Note: Will not work on 150-bushel hopper)
