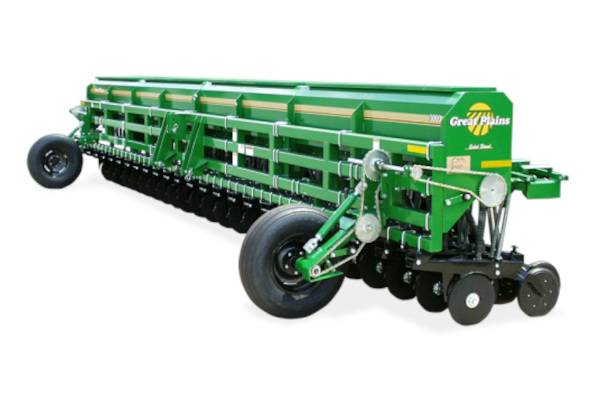

Great Plains 3000-3B30

Double tap to zoom



Features

00 SERIES OPENER
00 Series openers feature a proven welded box design. 13.5", 4mm blades mounted on 205 triple-lip sealed bearings have a 1/4" lead opener blade for easier penetration in tough conditions. An 18-position T-handle controls the depth of each opener. Full-length seed tubes guide seed to the bottom of the trench for exceptional accuracy, as optional seed firmers gently press the seed into the soil to ensure proper seed-to-soil contact.

4-BAR LADDER FRAME
Fully welded, 4-bar ladder-style frames give these 3-point drills added strength and durability.

BEDDED IRRIGATION SETUP
With the bedded irrigation setup, openers are raised or lowered to match peaks and valleys of raised beds to maximize seeding accuracy.

GAUGE WHEELS
The single gauge wheel configuration allows both gauge wheels to run at the bottom of bedded irrigation hills to improve depth gauging. Optional dual gauge wheels are also available.

PRESS WHEEL OPTIONS
Choices include 3"x13" double rib press wheels, 3"x13" center rib press wheels that create a crease over the seed to aid in even seed emergence, or 2"x13" smooth press wheels that firm the soil directly over the seed.

V-BOTTOM DIVIDERS
Dividers help distribute all the seed to the seed cups.

OPTIONAL SMALL SEEDS BOX ATTACHMENT
Mounts directly to the back of the main seed box. Utilizes a smaller version of the fluted feed cup to accurately meter tiny seeds like alfalfa and wildflowers.

OPTIONAL PRESS WHEEL SCRAPERS
Keeps the press wheels clean to improve depth control.

OPTIONAL DUAL GAUGE WHEELS
Order dual gauge wheels when extra flotation is needed.

OPTIONAL FLAT-FOLD ROW MARKERS
Heavy-duty markers are engineered to penetrate residue and soil.

Specifications

MODEL INFO 27' & 30' 3-POINT DRILLS
MODEL 3000-3B30
TYPE 3-Point Mounted
PRIMARY DESIGN Min-Till
ROW SPACINGS 3000-3B30 = 7.5"
NUMBER OF OPENERS
48 - 7.5"
36 - 10"
ENGINGE H.P. (min) 170+
WEIGHT (approx. range) 3,996-4,296 lbs (1,812-1,948kg)
DIMENSIONS
WORKING WIDTH 29' - 30'
WIDTH (transport) 30' 6"
LENGTH (transport) 6'
CLEARANCE (transport) depends on 3-point hitch
HEIGHT (transport) 5'
OPENER SERIES 00 Series
COULTER N/A
CAPACITIES
MAIN BOX CAPACITY 60 bu (2114L)
SMALL SEEDS BOX 7.2 bu (253L)
NATIVE GRASS BOX N/A
FERTILIZER N/A
