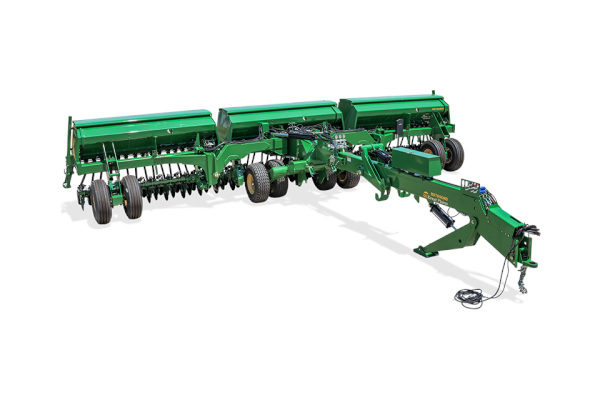

Great Plains BD7600-50

Double tap to zoom



Features

00HD SERIES OPENER
The 00HD Series opener is “beefed up” with a stronger opener body and heavier down-pressure springs than the standard 00 Series. Its 15", 4mm blades are offset ½" for better penetration in harsher field conditions.

STURDY BOX DESIGN & STRUCTURE
The updated frame and seed boxes demonstrate industry-leading durability and flexibility.

GREAT PLAINS METERING SYSTEM
The Great Plains Metering System on the BD7600 Series Drills allows producers to meter large seed, small seeds, and fertilizer — all through the main box of the drill. Feeder cups have been rigorously tested for durability and designed to meter all types of seeds and fertilizer with greater accuracy and easier calibration to save producers both time and money. A host of features makes this feeder cup the most innovative feeder cup available on the market today.

DRILLCOMMAND®
DrillCommand brings a new level of accuracy, convenience, and functionality to Great Plains BD7600 Box Drills. Intuitive and easy-to-navigate buttons with simple-to-understand icons make using this software quick and unintimidating. This option works with most ISOBUS compatible monitors, including Mueller, Topcon, Trimble, Ag Leader, John Deere, and Tellus Pro.

HYDRAULIC DRIVE SYSTEM
This optional drive system streamlines operation with DrillCommand®, an easy-to-use ISOBUS-compatible interface that puts the control of the drill at your fingertips. This industry-leading technology provides automatic section control and variable-rate capabilities while simplifying operation and calibration.

PRESS WHEEL OPTIONS
Choose from the 3"x 13" double rib, 3"x13" center rib, 2"x13" smooth, 3"x14" peak, 1"x12" double V, or 1.25"x13.5" double wedge-style press wheels (7½" or 10" spacings only).

ALTERNATING LEADING EDGE OPENER BLADES
The opener disc blades are offset, with alternating leading edges to enhance stability and reduce side-shifting for greater precision.

ALTERNATING LEADING EDGE OPENER BLADES
The opener disc blades are offset, with alternating leading edges to enhance stability and reduce side-shifting for greater precision.

OPTIONAL TOPCON XD & XD+ MONITORS
Monitors are available in two screen sizes: 7" (XD) and 12.1" (XD+).

OPTIONAL SCALES
Measure and monitor accurate product weights in the boxes.

OPTIONAL BLOCKAGE MONITORS
Monitor seed flow to ensure seeding performance.

OPTIONAL BOX LID LIGHTS
LED lights provide seed box visibility in low light conditions.

OPTIONAL NEEDHAM SEED TUBES
Smooth interior improves flow of seed and fertilizer.

SUREPOINT AG SYSTEMS LIQUID FERTILIZER
Great Plains now offers SurePoint Ag System's industry-leading liquid fertilizer application systems as a manufacturer-approved aftermarket solution for the BD7600 300 gal. (26’, 30’) and 400 gal. (40’) tank options. SurePoint has over 15 years of experience meeting customer’s liquid fertilizer application needs, providing basic to advanced individual row control systems.

Specifications

MODEL INFO 26'-40' FOLDING MIN-TILL DRILLS
MODELS BD7600-50
TYPE 3-Section Folding
PRIMARY DESIGN Min-Till
ROW SPACINGS 6", 7.5", 10"
(15, 17, 25cm)
NUMBER OF OPENERS 100 - 6", 80 - 7.5", 60 - 10"
TIRE SIZE 305/60B16.5 Skid Steer (wing)
385/60B17.5 6.5 Skid Steer (axle)
ENGINE H.P. REQUIREMENTS (min) 240+
WEIGHT (approx. range) 31,670-34,670
(14,365-15,726kg)
DIMENSIONS
WORKING WIDTH 50'
(15.24m)
WIDTH (transport) 16'
(4.88m)
LENGTH (transport) 40' 4"
(10.6m)
CLEARANCE (transport) 1' 5"
(43cm)
HEIGHT (transport) 8' 1"
(2.46m)
OPENER SERIES 00 Series | 00HD Series
COULTER N/A
CAPACITIES
MAIN BOX CAPACITY 181 bu
6378 liters)
FERTILIZER up to 45% of seed box
