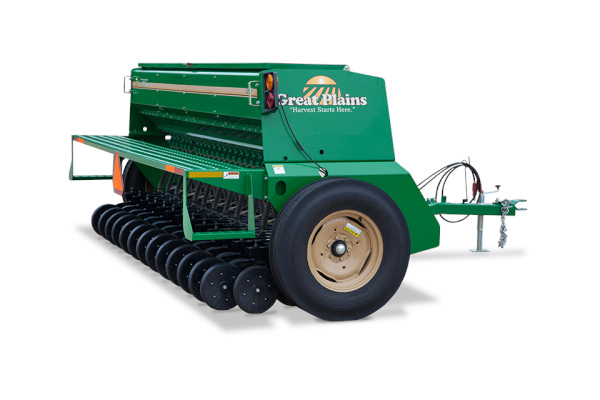

Great Plains 1300F

Double tap to zoom



Features

HYDRAULIC DOWN PRESSURE
A single hydraulic cylinder lifts openers out of the way for transport and end-row turns (inset). The same cylinder also applies down pressure to the 5-position down-pressure adjustment stop. This setting allows the operator to quickly change the amount of down pressure on openers.

LOCKOUT HUBS
Quickly disengage all chains and sprockets for reduced wear during transport.

SIMPLICITY OF OPERATION
Setting planting rates is fast and simple with a 4-speed sprocket transmission and easy-to-adjust seed-rate handle.

00 SERIES OPENER
Great Plains 00 Series openers are designed for min-till fluted feed drills.

3.2 BUSHEL-PER-FOOT SEED BOX
Largest seed box in its class means more time seeding and fewer stops to fill.

END WHEEL DRIVE
Large end wheels provide excellent ground drive to the seed meters. Lockout hubs save drive components from wear.

PRESS WHEEL OPTIONS
Single press wheels include a 3"x13" double rib press wheel; a 3"x13" center rib press wheel; a 2"x13" smooth press wheel; or a 3"x14" peak press wheel for arid areas. A 1"x12" double V press wheel is also offered for 7½" and 10" spacings.

T-HANDLE DEPTH CONTROL
T-handle offers 18 different positions for accurate depth control.

OPTIONAL AIR DESIGN SCRAPERS
The ideal solution for higher residue, moist conditions.

OPTIONAL FERTILIZER BOX (1300F)
Main seed box can be split for seed and fertilizer application.

OPTIONAL SMALL SEEDS BOX ATTACHMENT
Mounts directly to the back of the main seed box. Utilizes a smaller version of the fluted feed cup to accurately meter tiny seeds like alfalfa and wildflowers.

OPTIONAL SEED BOX AGITATOR
Eliminates bridging and provides consistent seed flow to the seed

Specifications

MODEL INFO 13' END WHEEL MIN-TILL DRILLS
MODEL 1300F
TYPE End Wheel Pull-Type
PRIMARY DESIGN Min-Till
ROW SPACINGS 6" (15.4cm)
7.5" (19.1cm)
10" (25.4cm)
NUMBER OF OPENERS 26 - 6"
21 - 7.5"
16 - 10"
TIRE SIZE 7.5 x 20, 4-ply Rib Implement
H.P. REQUIREMENTS (min) 65+
WEIGHT (approx. range) 4,100- 4,600
DIMENSIONS
WORKING WIDTH 13' (3.96m)
TRANSPORT WIDTH 15' 7" (4.74m)
TRANSPORT LENGTH 12' 6" (3.81m)
TRANSPORT CLEARANCE 9" (22.9cm)
TRANSPORT HEIGHT 5' 6" (1.68m) w/o markers
OPENER SERIES 00F Series
COULTER N/A
CAPACITIES
MAIN BOX CAPACITY 3.2 bu/ft
SMALL SEEDS BOX 3.2 bu (112L)
NATIVE GRASS BOX N/A
FERTILIZER Up to 45% of seed box
