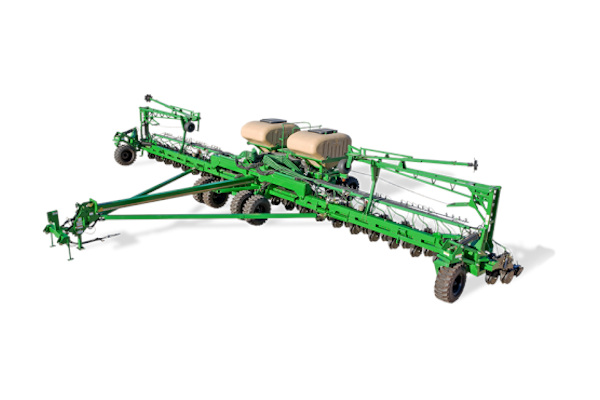

Great Plains YP2425A
Features
TELESCOPING TONGUE
The telescoping tongue puts the planter closer to the tractor in field position, allowing tighter turning on end rows.
FERTILIZER CARTS (OPTIONAL)
Choose from three different optional fertilizer carts, available in 500-, 735-, or 1000-gallon (shown) configurations. All carts are 2-point mounted for excellent handling.
CENTRAL FILL
These units are fitted with two 82-bu. hoppers for maximum field efficiency, high productivity, and operator safety.
HEMP SEED DISC
New, 5-cell and 30-cell hemp seed disc that meters seed accurately.
CANOLA SEED DISC
Canola producers will appreciate the precise singulation and spacing accuracy delivered by the canola seed disc from Great Plains. The specially-designed disc is part of our already extensive list of Air-Pro® Meter Discs for seeding corn, soybeans, milo, sunflowers, cotton, wheat, and sugar beets.
Specifications
MODEL INFO | 60' Bulk Yield-Pro Air-Pro |
MODEL | YP-2425A |
ROW SPACINGS / NO. OF ROW UNITS | TR30" / 48 rows 15" / 47 rows 20" / 36 rows 30" / 24 rows |
TIRE SIZE | 15-19.5 NHS 12-Ply |
*H.P. REQUIREMENTS (min) | 220-440 |
WEIGHT (lbs) | 18,420 - 31,200 |
DIMENSIONS | |
WIDTH (no markers) | 60' |
WIDTH (markers) | 60' |
WIDTH (transport) | 15' 3" |
LENGTH (transport) | 49' |
CLEARANCE (transport) | 22" |
HEIGHT (transport) | 13' 2" |
OPENER INFO | |
OPENER SERIES | 25 Series |
OPENER DOWN PRESSURE | 250-500 lbs |
OPENER TRAVEL (up-down) | 10" |
OPENER DEPTH RANGE | 0-3.5" |
CAPACITIES | |
SEED CAPACITY | Optional 82 bu Hoppers (2) or Seed Company Bulk Boxes (2) |
FERTILIZER CAPACITY | Optional Starter Fertilizer w/2000 gallon cart, semi-mounted 1000 gal (SML-1000), semi-mounted 735 gal (SML-735), semi-mounted 500 gal (SML-500) |
