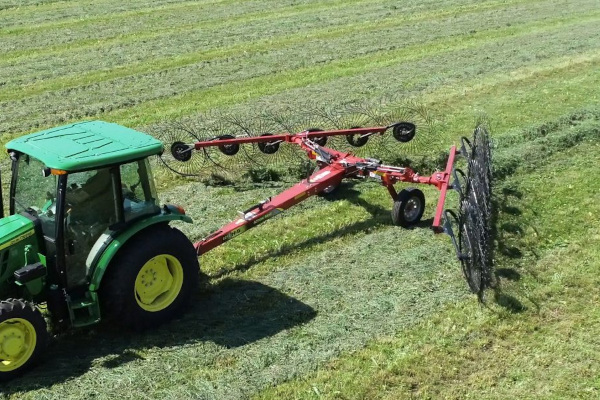

2200 Series Action AR2212 Action Rake
Overview:
High Clearance Frame
Wide Wheel Stance for Greater Stability
Rake Wheel Ground Pressure Adjustment
60" Diameter Rake Wheels
Features
- High clearance ACTION rakes have greater clearance in the raking position and more stability during transport than the competition.
- The backbone and wing design, when raised, allows the uniform release of crop to finish the windrow.
- An adjustable hitch allows you to level the rake for efficient raking.
- There are multiple width adjustments on the wheel rake beam for setting the windrow width. Raking width is easily adjusted by a single pin and clip.
- The operator can adjust the fine-tune nut to allow proper down pressure on each arm, allowing the 7.5 mm 60″ rake wheels to float smoothly over the ground.
Specifications
| MODEL | AR2212 |
| Rake Wheels | |
| Number of Wheels | 12 |
| Wheel Diameter | 60″ |
| Teeth Per Wheel | 40 |
| Tooth Diameter | 7.5mm |
| Rake Wheel Hubs | Tapered Bearings |
| Ground Pressure Rake Wheel Adjustment | Adjustable Nut on Rod |
| Dimensions | |
| Transport Width | 12′ |
| Transport Length | 21'3" |
| Raking Width | 21' - 24' 4" |
| Windrow Width Adjustment | 2' 10" - 7' 3" |
| Weight | |
| Standard | |
| Number of Raking Positions | 6 Narrow / 6 Wide |
| Wing Cylinders | 2″ |
| Jack | Standard |
| Tires | ST205/75R15 |
| Tractor Requirements | |
| Required Tractor Hydraulics | 2 Hose / 1 Remote |
| Required Hydraulic PSI | 1,875# |
