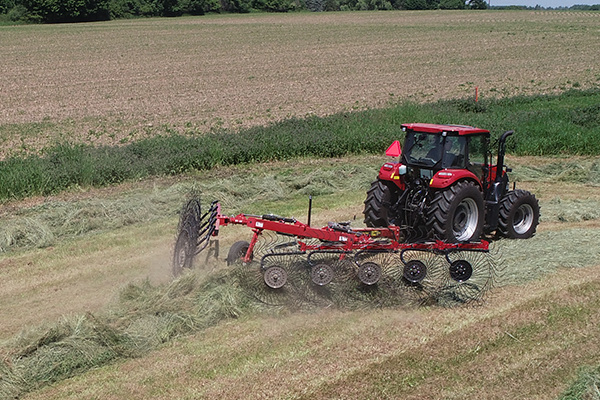

H&S AR3210 10-Wheel Action Rake

Double tap to zoom



Features

  • High clearance ACTION rakes have greater clearance in the raking position and more stability during transport than the competition.
  • The backbone and wing design, when raised, allows the uniform release of crop to finish the windrow.
  • An adjustable hitch allows you to level the rake for efficient raking.
  • There are multiple width adjustments on the wheel rake beam for setting the windrow width. Raking width is easily adjusted by a single pin and clip.
  • 60” – 7.5mm rake wheels w/tapered greaseable bearings
  • The spring suspension system allows each rake wheel to float independently over the ground.
  • Hydraulic hoses & tips included
  • New 15″ tires
  • A standard feature is a one-sided raking kit that allows you to manually close off a hydraulic valve for either rake wing when the rake is in the transport position. The hydraulic valves are also used as a lock for transport.
  • Turnbuckles on each rake arm allow you to adjust the windrow raking width to one of the two windrow width holes.

Specifications

MODEL AR3210
Rake Wheels
Number of Wheels 10
Wheel Diameter 60″
Teeth Per Wheel 40
Tooth Diameter 7.5mm
Rake Wheel Hubs Tapered Bearings
Ground Pressure Rake Wheel Adjustment Adjustable Nut on Rod
Dimensions
Transport Width 12′
Transport Length 20′ 5″
Raking Width 18' 5" - 21'
Windrow Width Adjustment 3' 3" - 7' 3"
Standard
Number of Raking Positions 6 Narrow / 6 Wide
Wing Cylinders 2″
Jack Standard
Tires ST205/75R15
Tractor Requirements
Required Tractor Hydraulics 2 Hose / 1 Remote
Required Hydraulic PSI 1,875#
Weight
Weight 2,000#
