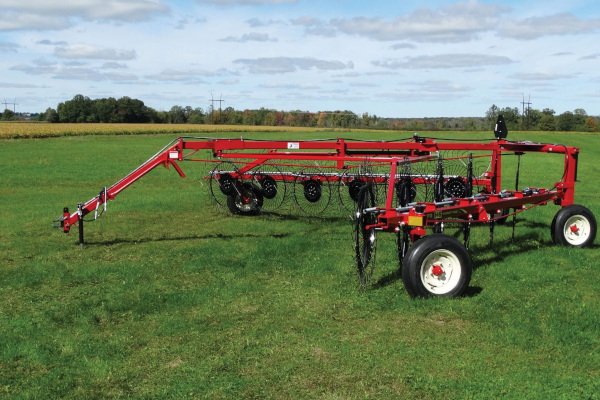

H&S HC4112 12-Wheel

Double tap to zoom



  • The H&S HC4112 HI-CAPACITY wheel rake has the raking wheels positioned ahead of the rake arms, main frame beams, and transport wheels.
  • With a high and wide rear frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
  • The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
  • Independent articulated rake beams have the flexibility to flex 3′ up or 3′ down.
  • Raking widths can be hydraulically adjusted in any position to a pre-determined raking width up to 24′
  • The HI-CAPACITY rake opens and closes hydraulically, rake wheels are lowered and raised hydraulically, and the rake wheels float independently.
  • The HC4112 folds up to 8′ 6″ or less with the touch of a lever for road transport or to go through gates.
  • A single point rake wheel down pressure adjustment on each rake beam allows the operator to fine tune the rake to fit varying conditions.
  • An adjustable brake band on top of the front spindle keeps the front gauge wheels from spinning in rough conditions.



  • 2-Wheel Center Kicker Assembly w/Hydraulic Lift
  • 55″ Rake Wheel Wind Panel Kit - (1) required per wheel
  • Rear Tandem w/6.70 x 15 Tires/Rims
  • Highway Lighting Kit
  • 10,100# Safety Chain


Rake Wheels
Number of Wheels 12
Wheel Diameter 55″
Teeth Per Wheel 40
Tooth Diameter 7mm
Rake Wheel Hubs Tapered Bearings
Transport Width 8′ 6″
Transport Length 24′ 6″
Windrow Width Adjustment 38″- 58″
Raking Width Up to 24′ Hyd. Set.
Wing Flex 3′ Up or Down
Number of Transport Wheels 4
Jack Standard
Transport Wheels 15″
Weight 3,500#
