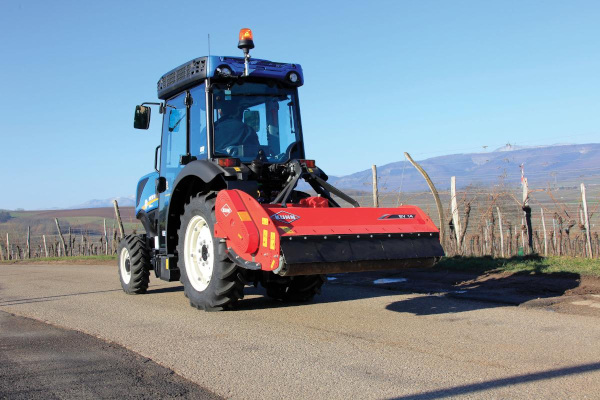

Kuhn BV14
Features
FOR NARROW ORCHARDS & VINEYARD
Designed for Narrow Orchards and Vineyards
Main Gearbox & Rotor Drive
All BV shredders utilize simple 540 rpm PTO drive. BV 10 models have been rated for tractors up to 90 hp while BV 100 models have been rated for tractors up to 110 hp. A shaft transmits power from the main gearbox to the new PowerQuad IV rotor drive belts. These belts are designed to provide reliable service with minimal maintenance. Three or four belts are utilized depending on the model.
Rear Roller
The rear roller features removable ends, allowing a bearing to be replaced without having to replace the entire roller. It also features multiple height adjustments that leave the optimal grass height in a variety of situations. In addition to the height adjustment capability, forward and rearward positions are possible.
Large Hood Opening
Depending on the series, the hood opening stands from 11.4” to 12.6”. These large clearances increase throughput with easy feeding of branches and prunings, especially in windrows.
GET TO HARD TO REACH AREAS
Slide Under Hard to Reach Areas
Low Profile
These shredders have a hood without protrusions, screw heads, or sharp angles to catch on trellis lines or low-hanging branches. The reduced hood height allows the BV shredders to slide under even the lowest of wires without damaging the vines or the trellises.
Side Shift Capability
All BV 100 Series models feature mechanical side shift capability as standard. This allows the operator to offset the unit relative to the tractor for shredding underneath plants or other overhanging obstructions. Only available on BV 100 Series shredders
POWER THROUGH CLIPPINGS
Hammer Knives
The hammer knives power through clippings and brush. They feature a curved back to reduce damage to the rotor if a hard obstacle is struck. The specially designed retaining pins maintain a firm hold on the knives year after year.
Counterknives
In addition to the hammer knives, there are also an industry-leading three rows of counterknives inside the hood of each BV series shredder. Counterknives help provide fine processing of material for quick decomposition.
Specifications
MODEL | BV 14 |
DIMENSIONS | |
Working width | 52.8 " (1.34 m) |
Overall width | 58.3" (1.48 m) |
Outer rotor diameter | 15.7" (398 mm) |
Tool linear speed | 112 mph (50 m/s) |
Number of heavy hammer knives | 16 |
Working height adjustment | Roller with removable ends |
Roller diameter | 5.5" (14 cm) |
PTO speed | 540 rpm |
Number of belts | 3 |
Rotor speed | 2,404 rpm |
Minimum PTO power requirement | 45 hp (33 kW) |
Maximum PTO power | 90 hp (67 kW) |
Maximum diameterof prunings or brush | 2" (51 mm) |
Hitch Type | 3-point - Cat. 1 |
Hitch offset | None |
Machine net weight | 860 lbs (390 kg) |
