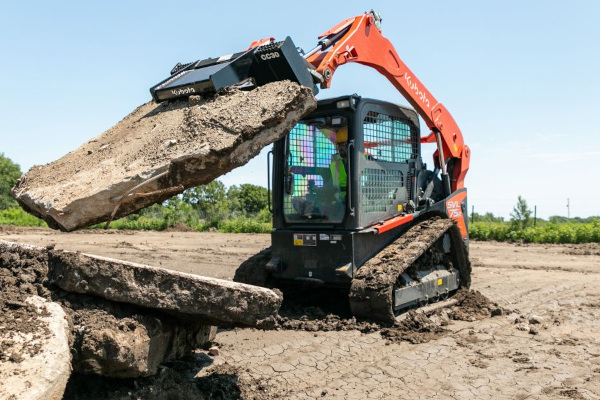

Land Pride CC30

Double tap to zoom



Features

Features Benefits
Universal Quick Attach Hitch Fits a wide variety of skid steer loaders and compact track loaders rated up to 100 hp. Makes the Concrete Claw quick and easy to attach.
High strength T1 steel side panels Resists bending forces while prying-up concrete slabs.
Side panels are reinforced with
continuous welded bottom plate, top
plate, and top rectangle tube
Adds strength and rigidity to the attachment
3/4" x 6" Continuous welded
front cutting edge
Adds strength to the attachment and stands up to high wear
Replaceable pin-on tooth tips Can be easily replaced as they wear or break.
Two, bolt-on cast steel skid steps Makes entering and exiting the power machine safer

Specifications

Specifications & Capacities
Maximum horsepower 100 (76.6)
Weight   lbs (kg) 590 (268)
Hitch type Universal Quick Attach Hitch
Overall working width   in (cm) 48 3/4 (124 cm)
Rear opening  in (cm) 7 3/4 (20)
Number of replaceable pin-on teeth 3
Pin-on tooth construction   in (mm) Cast iron tooth attaches to a welded on cast steel base with a tooth locking pin.
Side plate construction   in (mm) Continuous welded 3/4 (19) T1 steel
Bottom plate construction   9n (mm) Continuous welded 1/2 (13) steel
Front cutting edge construction  Continuous welded 3/4" x 8" (19 mm x 20 cm) high carbon heat treated steel
