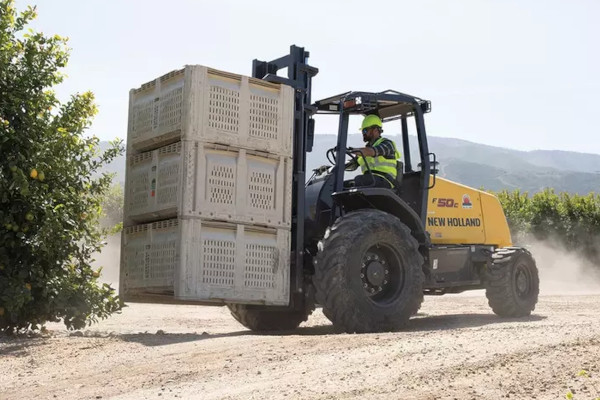

Forklifts F50C
Overview:
GET IT DONE
ANY JOB, ANY TERRAIN.
Standard 4WD and a power shuttle synchromesh transmission with four forward and four reverse gears put you in control of nearly any job or terrain. Standard differential lock features on-the-go, push-button activation and over 10 in (254 mm) of ground clearance to let you tackle any terrain with ease.
Features
LOAD CONTROL SYSTEM
THE INDUSTRY'S FIRST LOAD CONTROL SYSTEM
A 12 ft (3.7 m) standard mast delivers 5,000 lbs (2268 kg) of lift capacity. Automatic load control — an industry first — provides on-the go mast cushioning to stabilize your load when traveling over bumpy terrain. Shock is reduced for a more comfortable ride.
COMPACT AND MIGHTY
EFFICIENT AND STRONG TO GET MORE DONE, FAST
- 5,000 lbs (2269 kg) rated lift capacity
- 74 HP engine @ 2200 RPM
- 4WD, 12 ft (3.7 m) mast, 48 in (1219 mm) forks
- 12 ft (3.7 m) standard capacity lift with 10 in (254 mm) of ground clearance
FUEL-EFFICIENT POWER
DO MORE WITH LESS
The 74 horsepower, 3.4-liter FPT engine features a Diesel Oxidation Catalyst (DOC) for increased fuel efficiency and faster response times. No fluids to add or diesel particulate filters to replace means simplified maintenance and a simple, cost-effective Tier 4 Final solution.
Specifications
| MODEL | F50C |
| ENGINE | |
| Model | FPT F5HFL463D |
| Emissions Certification | Tier 4 Final |
| Type | Diesel, 4-stroke, turbocharged |
| Cylinders | 4 |
| Displacement in³ (L) | 207 (3.4) |
| Engine Speed Rated - full load Rpm | 2,200 |
| Horsepower @ 2200 RPM Gross hp (kW) | 74 (55) |
| Horsepower @ 2200 RPM Net hp (kW) | 68 (51) |
| DRIVETRAIN | |
| Transmission | 4WD |
| Transmission - standard | 4F-4R Power Shuttle Synchromesh Transmission manual gear shift fully |
| Travel speed Max mph (kph) | 24.1 (38.8) |
| Differential lock | On-the-go push-button activation |
| Service brakes | Individually applied, hydraulically actuated, outboard mounted, wet disc, 2 per side |
| Parking brakes | Transmission Mounted spring applied hydraulic release - SAHR |
| HYDRAULICS | |
| Gear pump gpm (Lpm) | 18 @ 3,000 psi 68 @ 207 bar |
| Heavy-duty hydraulic oil cooler | Standard |
| 7 micron, spin-on oil filter | Standard |
| Fuel tank gal (L) | 31 (119) |
| Hydraulic System Total qt (L) | 74 (70) |
| PERFORMANCE SPECIFICATIONS | |
| MAST (12 FT STANDARD) | |
| Lift capacity to full height w/ 24 in load center lb (kg) | 5000 (2268) |
| Mast type | 2 stage roller mast |
| Lift speed ft/min (m/s) | 107 (.55) |
| Tires Front (4WD) | 16.9 L x 24, 12 ply rating |
| Tires Rear (4WD) | 12 L x 16.5, 8-ply rating |
| TURNING DIAMETER | |
| 4WD - engaged w/ brakes ft in (m) | 20' 5" (6.21) |
| 4WD - engaged w/o brakes ft in (m) | 27' 10" (8.47) |
| DIMENSIONS | |
| Overall height to top of mast - mast closed in (m) | 110 (2.8) |
| Overall operating height - top of bin clamp w/ mast fully raised in (m) | 225 (5.7) |
| Maximum fork height - forks horizontal std. mast. in (m) | 144 (3.7) |
| Overall height to top of ROPS: 19.5 L x 24, 12-ply in (m) | 104 (2.6) |
| Wheelbase: 4WD in (m) | 16' 2" (4.93) |
| Overall length with 48 in forks ft in (m) | 84.5 (2.15) |
| Ground clearance: 4WD in (mm) | 10.3 (260) |
| Overall width - outside tires in (mm) | 80.7 (2050) |
