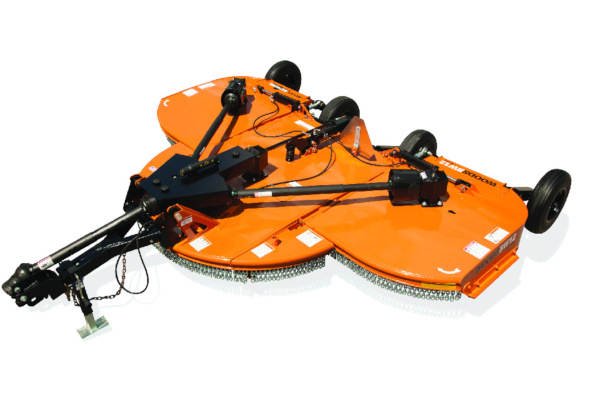

Woods BW12

Double tap to zoom



Features

  • Ideal for use on lower horsepower compact and utility tractors
  • Twelve gauge, high-strength steel and smooth, sloped deck provide durability for long life
  • Easy hook-up reduces preparation time and frustration
  • Fully baffled deck, ensures better distribution of cut material, and the performance you expect
  • Six-year limited gearbox warranty including seals, for confidence in your purchase decision
  • Woods’ exclusive Quick-change blade pins allow blade changes from the top of the deck, in the field
  • Rounded wings easily maneuver around obstacles and slice through tall brush while the curved leading edge shrugs off impact
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.

Specifications

Tractor PTO HP 35 minimum
Hitch Type Swivel clevis
Cutting Height (in) 2 to 12
Cutting Capacity Diameter (in) 1.5
Cutting Width (in) 144
Blade Tip Speed (fpm) 14,300 center; 14,900 wing
Weight (lbs) 2,450
Deck Thickness (in) .105 (12 ga)
Side Skirt Thickness (in) .179 (7 ga)
Side Skirt Depth (in) 11
Transport Width (in) 96
Wing Flex Up/Down (degrees) 90 up, 22 down
Driveline Rating CAT 4 CV main, CAT 3 wing
Splitter/Wing Gearbox Rating (hp) 160 / 75
  *Gearbox horsepower ratings listed are based on field testing.
Output Shaft Diameter (in) 1.57
Tongue Weight (lbs) 750
Wheel Options 21 inch laminated; 24 inch severe-duty Ag
Options Available in Woods Orange, Green, Orange, Blue
Suspension Spring on center section
Blade Overlap (in) 6
Blade Dimensions (in) .5 x 4
Cutting Area Shielding Standard chain shielding
