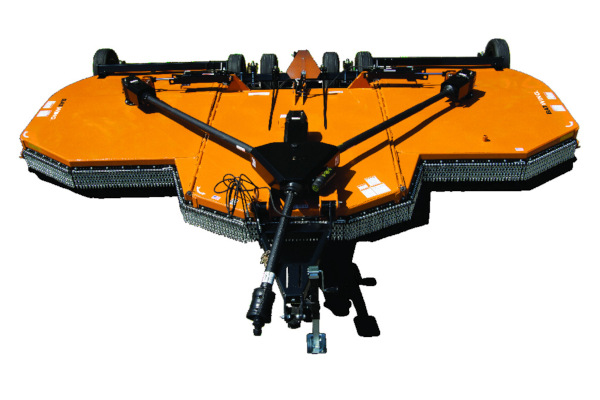

Woods BW20.51

Double tap to zoom



Features

  • Ideal for cutting tall grasses and saplings up to 2 inches in diameter
  • Hinged metal gearbox shields open easily for maintenance
  • Six-year limited gearbox warranty including seals, for confidence in your purchase decision
  • Woods’ exclusive greasable Quick-change blade pins allow blade changes from the top of the deck, in the field
  • Heavy-duty skid shoes prevent gouging and protect the deck
  • Strategically placed, welded baffles cut and distribute debris evenly
  • Side frame depth of 13.25 inches – the deepest in the industry
  • NOTE: All gearbox horsepower ratings listed in the following specifications are based on Woods’ field testing.

Specifications

Tractor PTO HP 70-200
Hitch Type Pivoting clevis
Cutting Height (in) 2 to 15
Cutting Capacity Diameter (in) 2
Cutting Width (in) 240
Blade Tip Speed (fpm) 15,450 at 540 rpm; 16,300 at 1,000 rpm
Weight (lbs) 6,510
Deck Thickness (in) .135 (10 ga)
Side Skirt Thickness (in) 0.25
Side Skirt Depth (in) 13-1/4
Transport Width (in) 123
Wing Flex Up/Down (degrees) 90 up, 22 down
Driveline Rating CAT 6 CV main, CAT 4 wing
Splitter/Wing Gearbox Rating (hp) 250 / 200
*Gearbox horsepower ratings listed are based on field testing.
Output Shaft Diameter (in) 2
Tongue Weight (lbs) 2,400
Wheel Options 15 inch rims; 21 inch laminated; 25 inch severe-duty Ag; or 29 inch used aircraft
Options Double row chain shielding; tandem spring arm suspension; pintel ring hitch; spring-loaded wing lock-ups for narrow (118 Inches) transport width; LED lights
Suspension Spring-loaded axles
Blade Overlap (in) 6
Blade Dimensions (in) .5 x 4
Cutting Area Shielding Standard chain shielding
