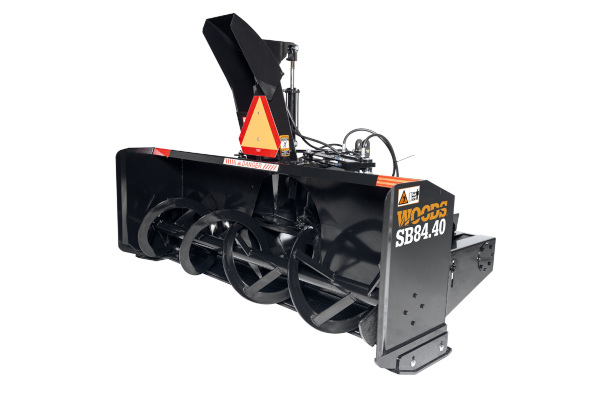

Woods SB84.40

Double tap to zoom



Features

  • Dynamically balanced auger and impeller for less vibration
  • Heavy-duty reinforced housing to withstand hard impacts
  • Shear bolt protection on driveline for processing heavy snow
  • Backed by a 6-year gearbox warranty under the industry-leading Woods Cut Above™ Warranty Program
  • Chain drive for easy access to bearing and shear bolt, and servicing chain drive
  • Skid shoe protects the frame and prevents wear. Replaceable and adjustable for height
  • Stand positions your snow blower for easier tractor connection
  • Mechanical or hydraulic chute adjustment allows for easy repositioning of the chute
  • Quick-hitch ready from the factory making for easier tractor hook up

Specifications

Tractor PTO HP 35-90
Hitch Category CAT 2
Operating Weight; including chute & hydraulic deflector (lbs) 1130
Working Width (in) 84
Working Height (in) 34
Overall Width (in) 85 1/2
Overall Length (in) 54
Impeller Diameter (in) 27 1/2
Impeller Width (in) 10 1/2
Impeller (rpm) 540
Main Auger Diameter (in) 20
Auger Driven System Chain No. 60 H
Auger (rpm) 170
Chute Rotation Manual - Worm gear w/handle Hydraulic - Cylinder (2"x8") including bracket, hoses, and tips
Replaceable and Reversible No
Cutting Edge Dimension (in) 1/2 x 3
Main Driving System 60
Chain Idler Yes
Parking Stand Yes
Number of Auger Shear Bolt 1 (on drive shaft)
Number of Impeller Shear Bolt 1 (on driveline)
Type of Hitch CAT 2
Quick Hitch Compatible Yes, CAT 2
Gearbox Warranty 6-years includes seals
